Product Description
Application

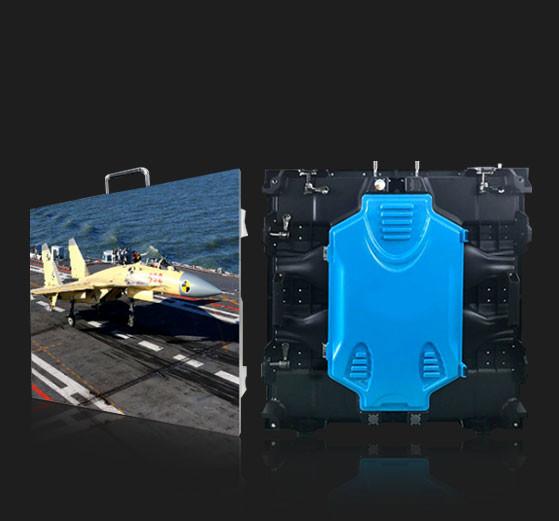

500*500/500*1000 rental series is one of the most mature rental led
display in stage performance, bar entertainment, ceremonial
wedding, conference, exhibition, musical theater, etc. industry,
etc. it came along announced the successful application of Aluminum
Diecasting technology in led display market. With features of
weight, portable, easy to install & dismantle.Fanless design and
good heat dissipation make rental events labor-saving, high
efficiency and cost-effective.
Product feature
1. Seamless assembly
With CNC processing, the range of tolerance is controlled within
0.1mm that guarantees the seamless assembly and perfect performance
is presented
2. Perfect Details Design
Chamfering designed cabinet corner protects the user from
accidental damage.
3. Modularization design, Friendly Maintenance
Modularization design makes assembly and maintenance quickly and
efficiently, and front and rear maintenance are available which is
you're your choice.
4. Curve Installation compatible,creative design
Concave and convex radian design optional , helping your LED video
wall creative and changeable.
5. Light weight and Ultra-thin
The weight of each cabinet is less that 7kg that makes it easy to
carry and labor-saving, high efficiency and cost-effective.
Core technique solution of 500*500 Series
1. High Quality Driver IC

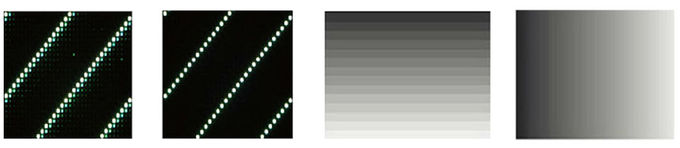

Chipone Series high quality Driver IC solution with Anti-ghost
function help reducing your worry. And ≥ 1920Hz refresh rate enable
us to do Live Broadcasting, lifelike animated picture and videos
bring us an eye feast.
2. Low gray level adjustment effect
Light series with excellent gray level adjustment function ensuring
your requirement on the brightness and color uniformity.
Specification
| ITEM NO:P4 |
| LED Module Parameters |
| Pixel Pitch | 4.mm |
| Pixel Density | 62500dot/m2 |
| LED Configuration | 1R1G1B |
| LED Type | SMD2121 |
| Module resolution | 128*128dots |
| Module Size | 256*128 mm |
| LED Cabinet Parameters |
| No of module | 2*2 |
| Cabinet Size | 500*500*75mm |
| Cabinet Weight | 6.8Kg |
| Flatness | gap<0.2mm |
| Maintain Way | optional |
| IP Rating | IP 65 |
| Cabinet Material | Aluminium die casting |
| General Parameters |
| Driving method/Scan method | Constant current ;1/13 |
| Driving IC | 2038s |
| Gray Scale | 65536 |
| Refresh rate | ≥1920Hz |
| Luminance of white balance | ≥1000cd/m2 |
| Color temperature | 4500K-9500K |
| View angle | H:120°, V:120° |
| Uniformity of the luminance and chromaticity | ≥97% |
| Max.Power Consumption | 800W/m2 |
| Avg.Power Consumption | 360W/m2 |
| Input Voltage | AC220V/50Hz |
| Frame Rate | 60Hz |
| MTBF | 100000 Hours |
| Operating Temperature/Humidity | -20 - 60°C/ 10%-90%RH |
| Certification | FCC,CE,Rosh |
| Blind spot rate | ≤0.01% |
| Support Input | Composite, S-video, DVI,HDMI, SDI,HD-SDI,VGA |
| Control Distance | Ethernet cable≤100m or Fiber Optic>100m |
FAQ
1. Can we make any size of led display?
Nope, according the led module size and cabient size, such as
ph4.81mm is 500x500mm for smallest unit.
2. What's best size of led display?
The best aspect ratio of LED display are W16:H9 or W4:H3
3. How to install led display?
We will provide drawing of steel structure or hanging truss,then
you can install led display very easy.
4. How to order LED display?
Please tell me indoor or outdoor do you need,size of led
display,where will be application of led display.
5. How to shipment?
Normally, ph4.81mm will be shipped by air and dhl, becayse the
value is high than other product.
6. How to payment?
You can transfer payment by TT,west union, Alibaba Trade Assurance
online.
Remark
1. Price term:Total quotation is based on FOB Shenzhen
2. Warranty period: 2 years
3. Payment term: 30% deposit, Balance before shipping.
4. Packing method: Flight case
5. Delivery time: 12~20 working days after deposit
