P5.2mm LED Interactive Floor Display Anti / Slip Human / Computer
Interaction Full color
Description

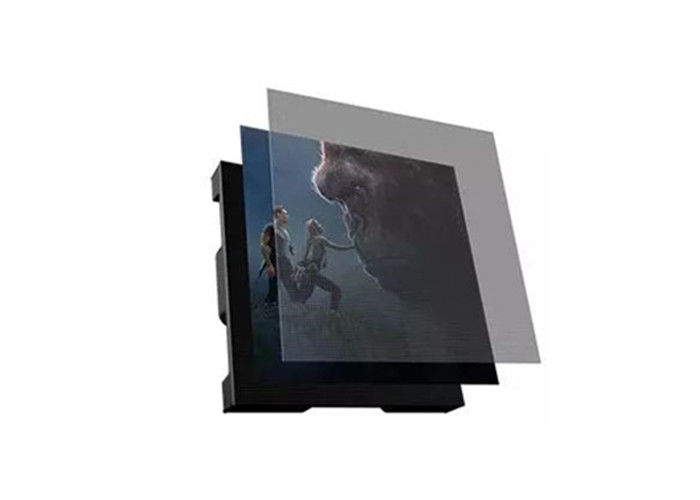

1:Products use:P5.2mm LED floor tile screen
● This technical specification is only applicable to the use of
HanJing light P6.25 floor tile screen.
2:Products in this paper:
● The special effect of floor tile screen in the stage performance
has been used fully and vividly, creating an audio-visual feast
that is magnificent
and modern.
● P6.25LED floor tile screen module luminescent lamp bead mining
SMD2727 three-in-one design, which makes LED floor tile screen
indoors or
outdoors has a very good effect.
● The P6.25LED floor tile screen is designed with a super PC cover,
which can reach 1.5 tons.
● LED floor brick screen adopts constant current drive chip and
input buffer chip. The link LED control system can display video
animation, image
text information and other characteristics.
Floor LED Display Feature:
- Above 16bit grayscale processing, brightness up to 3500cd/m2
- Using high strength wear - resistant non - slip fabric, can be
directly trample
- Dance function
- Different from other LED display to play the text and video images,
people can dance on the dance floor led panel, with music and
video, people can get better audiovisual enjoyment.
- Fast and flexible installation: no direct installation or rail
installation can be used.
Application:
Widely used in stage fixed installation,singing and dancing event
evenings,various
conferences,exhibitions,stadiums,theaters,auditoriums,lecture
halls,multi-purpose halls,conference rooms,interpretation halls,di
bars,night clubs,high-end entertainment discos,TV station Spring
Festival Evening,auto show,important cultural events in various
provinces and cities.
| Ordinal number | Parts | Projects | Floor tile screen technology index |
| 1 | Pixels | Arrangement | Landscape |
| 2 | Pixel spacing | 6.25mm |
| 3 | Pixels | 1R1G1B |
| 4 | Lamp bead model | SMD2727 (chip ratio 3:6:1) |
| 5 | Physical density | 25600 / ㎡ |
| 6 | Module/box size | Module size | 250 the width & times; High (250 mm) |
| 7 | Modular resolution | 48 wide & times; 48 high (point) |
| 8 | Body size | 500(w)×1000(h)mm |
| 9 | The body weight | 24.1KG/one |
| 10 | Casing thickness | 9 cm(Block thickness) |
| 11 | The whole screen parameters | Out of control points | ≤3/100000 |
| 12 | Unit die joint | The joint size of the plate gap is consistent and ≤ 2 ㎜ |
| 13 | The best distance | 8-60m |
| 14 | Perspective | The level of 140; , vertical 140; |
| 15 | Surface flatness | Maximum error ≤ 2 ㎜ |
| 16 | Screen surface ink color | Ink consistency, no reflection |
| 17 | Uniformity | Module brightness uniformity, uniformity 1:1 |
