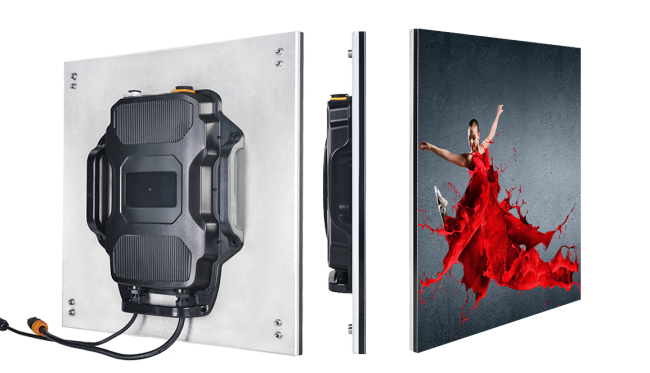

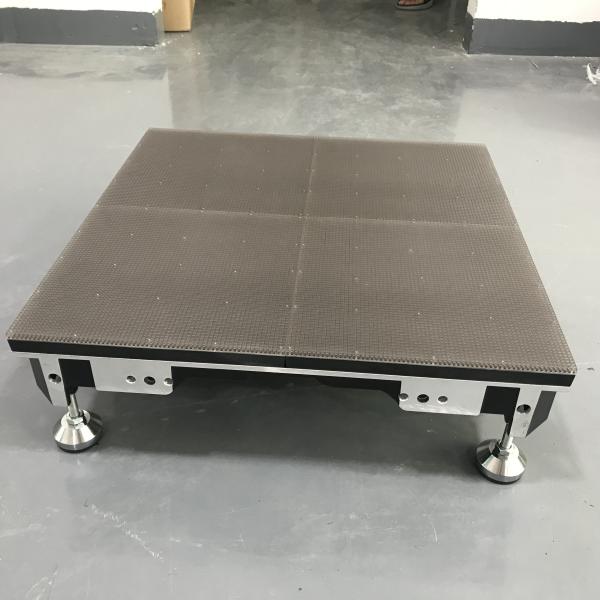

Lightweight Aluminum Interactive LED Floor Tile P6.25 SMD Full
Color Outdoor Indoor
Features:
1. Robust panel with heavy load of 1000kg/sqm, high contrast,
non-reflective, non-slip, high level of scratch resistance.
2. Accurate aluminum framework ensures seamless surface and great
heat dissipation, fan-less design, noise-free.
3. Data and power cables fixed on panel, save half of the time for
wiring.
4. Front and rear IP65 waterproof. With front and rear IP65
waterproof design, it can satisfy the use requirement in many
applications.
5. The shape of the grid on mask can be customized to be square,
round etc.
Description
1.Scree keeps ranking top 10 in recent 5 years in Shenzhen LED
industry.
2. The product pixel pitch series ranges from P1.25 to P16, screen
series including indoor&outdoor fix install display, stage
rental screen, poster screen, lamp-post screen, football screen,
dual-side advertising screen, pharmacy LED sign, flexible screen,
dance floor screen,scrolling screen, etc.
4. We own 2 plants with production area 38,000 square meters, 100
SMT machines keep running day and night.
5. Number of employees is stable at around 250, and the age is
between 20-50.
6. Great production capacity. Monthly 10,000 square meters LED
displays, weekly30,000 pcs LED modules.
7. Short lead time. Module delievery time 5-7 days, LED display
delievery time 10-20 days.
8. We have passed CCC/CE/FCC/BIS/RoHS/ISO9001 certification. As
well, our products have won prizes and praises from our clients
domestic and overseas.
Application:
Widely used in stage fixed installation,singing and dancing event
evenings,various
conferences,exhibitions,stadiums,theaters,auditoriums,lecture
halls,multi-purpose halls,conference rooms,interpretation halls,di
bars,night clubs,high-end entertainment discos,TV station Spring
Festival Evening,auto show,important cultural events in various
provinces and cities.
| 1 | Screen Area | 6*5meters |
| 2 | Cabinet Quantity | 120 cabinets |
| 3 | Brightness | ≥1800cd/㎡ |
| 4 | Brightness(Max./Min.) | 1.2:1 |
| 5 | Driving Method | 1/6 Scan |
| 6 | View Angle | Horizontal140° Vertical 140° |
| 7 | Pixel Pitch | 6.25mm |
| 9 | Fresh requency | >2000 HZ |
| 10 | Frame Frequency | 50 -- 60Hz |
| 11 | Input Voltage | AC220V/50Hz or AC110V/60Hz |
| 12 | Defects Rate | ≤0.00001 |
| 13 | Power Consumption | Max: 680W/㎡ Average: 280W/㎡ |
| 14 | MTBF | >10,000 hours |
| 15 | Life span | ≥100,000 hours |
| 16 | Module Display Brightness Uniformity | <3% |
| 17 | Earth Leakage Current | <3mA |
| 18 | Protective Grade | IP40 |
| 19 | Temperature-operating | ﹣25℃～60℃ |
| 20 | Humidity-operating | 10%～95% |
| 21 | Brightness control | 0～256 adjustable |
| 22 | Controlling system | Novastar |
| 23 | Power supply | G-energy/Meanwell |
