Module P8mm 320x160mm Outdoor Digital Display Board

Ask Lasest Price
Brand Name :	JuCaiYuan
Model Number :	Outdoor P8
Certification :	UL/CE/ROHS/FCC
Price :	negotiation
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	60000Sqm per month
Delivery Time :	5-10 days

Add to Cart

Product Details
Company Profile

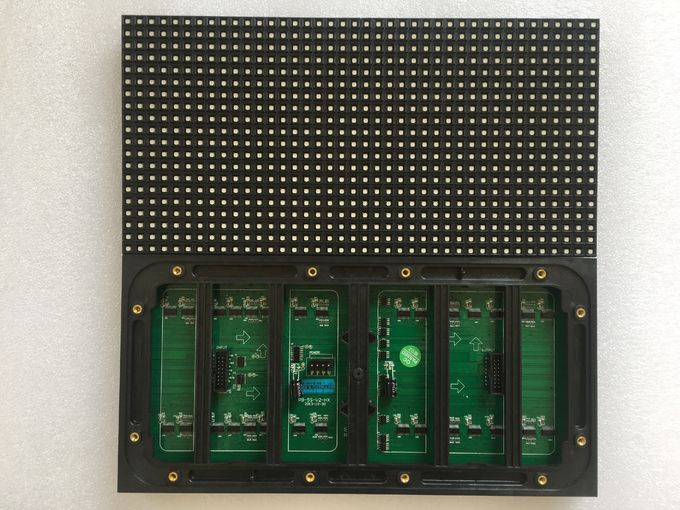

Module P8mm 320x160mm Outdoor Digital Display Board

Waterproof P6 outdoor AVOE LED advertising screens IP65 RGB 7000cd/sqm

Features
1 . New mask design makes LED light almost zero reflection, which ensures the screen displaying effect;
2 . The cabinet of unit modules adopts to high-temperature spraying technology, the antirust function is greatly improved;
3 . Module surface flatness ± 0.2mm, the entire screen has good flatness;
4 . High uniformity display color;
5 . For improving the service life, PCB is made by wave soldering process with the green oxygen isolation layer, which prevents the line of moisture and oxidation.
6 . Service efficiency of the screen switch power supply is increased substantially, which reduces power failure rate;
7 . Using fishbone bus line greatly reduces the contact problem;

8 . IP65 grade for high performance waterproof and dustproof capability;

Application
1. Outdoor advertising, digital billboards, advertising in big companies
2. Sports halls, fields, playgrounds.
3. Airports, bus stations and railway passenger terminals.
4. Facades of shopping malls, department stores, banks and car dealerships.
5. Architecture and social projects, information systems in cities.
6. Show-business, concerts, festivals, motor shows and other public events.

Specifications :

Pixel pitch	8mm	8mm
Module size	256mm*128mm	320mm*160mm
Resolution of module	32*16 dots	40*20dots
Density of pixel	15,625 dots/m2	15,625 dots/m2
LED Size	SMD3535	SMD3535
Pixel configuration	1R1G1B	1R1G1B
Best viewing distance	≥8m	≥8m
Horizontal viewing angle	140º	140º
Viewing angle	140º	140º
Driving method	1/4 scan	1/5 scan
Brightness	≥7000cd/m2	≥5500cd/m2
Refresh rate	1920Hz~3840Hz	1920Hz~3840Hz
IP grade	IP65	IP65
Max power consumption	35W/pcs	40W/pcs
Avg power consumption	11.7W/pcs	13.3W/pcs
Input voltage	DC5V	DC5V
Storage temperature	—40°C~65°C	—40°C~65°C
Working temperature	—30°C~55°C	—30°C~55°C
MTBF	≥10,000 hours	≥10,000 hours
Life span	≥100,000hours	≥100,000hours
Control system	Nova/Linsn/Colorlight/DBstar etc	Nova/Linsn/Colorlight/DBstar etc
Specification might be slightly different based on different components

Competitive advantages:
1, P5 SMD outdoor full color LED display uniform in brightness and color;
2, Full color P5 LED screen is utilizing full black color LED chips;
3, Indoor full color LED video screens contrast ratio up to 1000:1 to react real color of the content;
4, Utilizing Sum driver IC to reach high refresh frequency and high grey grade;
5, Large viewing angle at 140 degree horizontal and vertical;
6, P4 LED display is of high resolution for indoor rental events that require high quality presentation and its cost is being lower for large size indoor LED screens use
