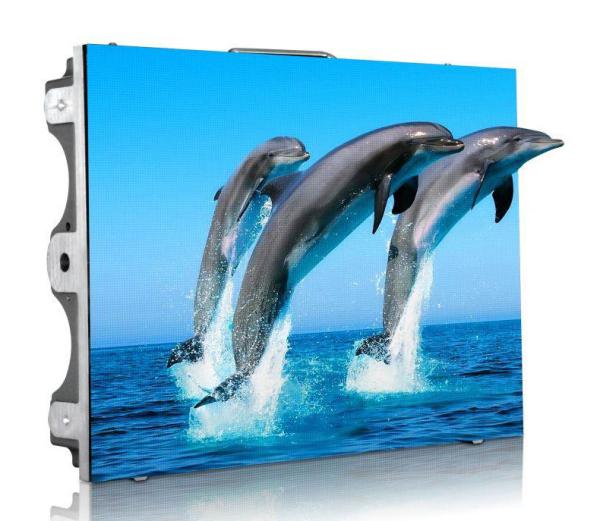

P1.25/P1.667 indoor display screen High resolution and high refresh
P1.667 Indoor LED Displays Features:
1.Massive video monitoring surveillance video and key combination
can not be dispalyed,and the call to meet the daily needs of
emergency command.
2,No full-screen display of patchwork fine point,to ensure accurate
display of digital signals graphic and text information.
3.High quality LED chip and high anti-static electricity capacity.
4.Large viewing angle and smooth displaying provide excellent
visual effect from every angle.
5.Ultra high brightness,low attenuation,high reliability and
weather ability.
6.High contrast ratio.Adopting black lamps can improve the contrast
ratio by 50%.
7.High refresh rate,high gray scale,ghost-canceling,low power
consumption,low EMI,
anti-creeping,multi-route redundancy backup-supporting,and dot-by-dot-calibration.
SPECIFICATION OF
| Product Name | Indoor P1.667 SMD HighDefintion Full Color 3IN1 |
| Pixel Pitch | 1.667 mm |
| Pixels Density | 360000 dots/m² |
| pixel configuratin | 1R1G1B |
| pixel resolution | 120dots * 90dots |
| module size | 200*150mm |
| LED Lamp | SMD1010 |
| Drive type | Constant drive IC |
| scan mode | 1/20scan |
| port type | HUB75E |
| Brightness of white balance | 1,200 cd/m² |
| Cabinet size | 400*300*40mm |
| Pixel per cabinet | 256dot*192dot |
| Max.Power consumptiow (W/m²) | ≤1,250W/㎡ |
| Working voltage | AC110V~220V ±10% |
| Best viewing distance | 1.6m-10m |
packaging and shipping
1.Wooden case: Wooden case is only for one time using
transportation.For the fixed installation ledpanel system, wooden
case packing is the only way and the best way for packing
2.Flight case: The LED air box is equipped with a clapboard and
shock-proof cushioning material. It is shock-proof and
shock-proof.；Casters can be installed in the LED air box, which is
highly mobile and flexible.；Can be customized according to customer
requirements；if your led display screen system is for the rental
use, please choose the flight case for your led display screen.
3.Carton box: It is the inexpensive packing method for the led
display,which is mainly for the small screen and short shipping
distance
.
Our Services
1. Provides all LED display relative solution, like installation
drawing etc.
2. Have free training about how to use and maintain LED display
with our professional engineer.
3. Provide free spare parts for future urgent need.
4. Technical Support: We could send our engineer to guide the
installation for you. But the relevant cost should be paid by your
esteemed company such as accommodation & round-trip ticket.
5. Professional engineer in service after sales, 18/7 for any
inquiry.
6. All other service request will be considered in BST , please
contact with sales in details
