Green Color DIP346 IP65 Outdoor Programmable LED Signs

    Buy cheap Green Color DIP346 IP65 Outdoor Programmable LED Signs from wholesalers

    Buy cheap Green Color DIP346 IP65 Outdoor Programmable LED Signs from wholesalers
    • Buy cheap Green Color DIP346 IP65 Outdoor Programmable LED Signs from wholesalers

    Green Color DIP346 IP65 Outdoor Programmable LED Signs

    Ask Lasest Price
    Brand Name : JuCaiYuan
    Model Number : JCY-K41
    Certification : CE ROHS FCC
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 ㎡/month
    Delivery Time : 12-20 working days after deposit
    • Product Details
    • Company Profile

    Green Color DIP346 IP65 Outdoor Programmable LED Signs

    Features:
    RF Wireless Controlled LED Countdown & Countup Timer

    Display Modes:
    6digit clocks: Timing to 99 hrs, 59 min, 59 sec (99:59.59) or 99 min, 59 sec, 99/100 sec (99:59.99), selectable.

    Timing Modes:
    Time up or time down, count down by 45 minutes, 20 minutes, 12 minutes.
    Time-of-day mode

    Enclosure:
    Extruded plastic case, painted black, with acrylic window. Rugged, tamper-proof, weather resistant, smooth edges.


    Light Chip
    TypeDIP346Chip parametersRed λd:(620-625nm) IV:(800-960mcd)
    Color1R/1G/1BChip parametersGreen λd:(520-525nm) IV:(1350-1650mcd)
    BrandEpisterChip parametersBlue λd:(470-475nm) IV:(330-400mcd)

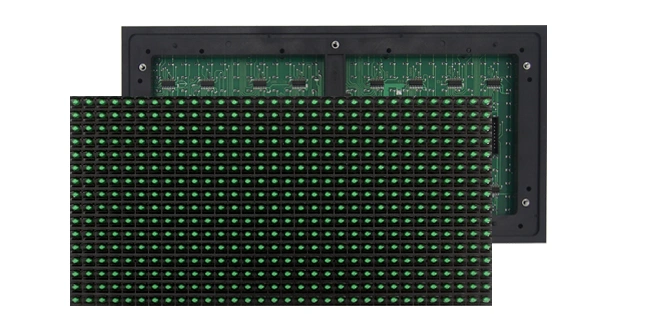

    LED Module
    Pixel Pixel10 mmModule Size320 mmWX160 mmH
    Module Resolution32×16=512(Dots)Module Weight0.46kg

    LED Display Cabinet
    Pixel Density10000 Dots/m2Frame Frequencyno less than 60 frame/sec
    Cabinet Resolution96×16=1536(Dots)Input VoltageAC110-220V±10%,50/60Hz
    abinet Dimension(W*H*D)960x 160 x 140mmOutput VoltageDC-5V,40A/60A/80A
    Module Quanty /Cabinet3 pcs = 3(w) x 1(h)Grey Scale Levels16bit
    Cabinets MaterialIron CabinetColor ProcessingR(1024)×G(1024)×B(1024)
    Cabinet Weight7 kgBrightness Adjustment256 color levels
    Brightness≥5800 nitsMTBF( mean time between failures)5000 hours
    Viewing AngleHorizontal 120°, Vertical 110°Life-span100,000 hours
    Nearest Viewing Distance8 meterProtection Level(front/back)IP65
    Power Consumption (Max)900 w/m2Malfunction Dot Rateless than 0.0001
    Power Consumption (Average)300 w/m2Working Temperature-30ºC~50ºC
    Display FunctionText,Graphics,VideoHumidity15%~85%
    Refresh Rate≥2000HzScan Mode1/4
