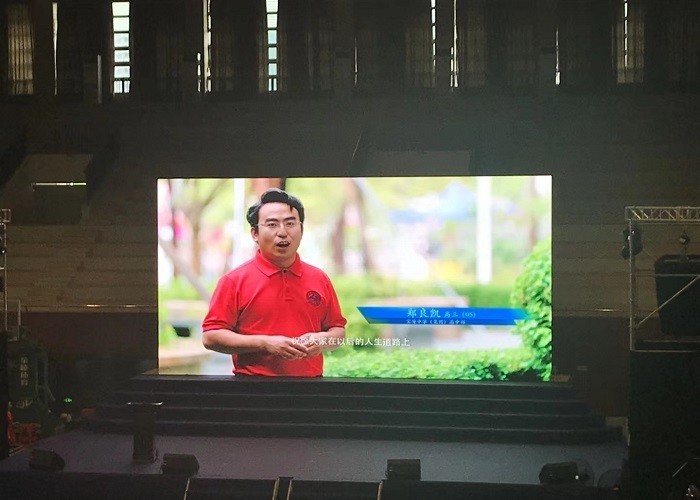

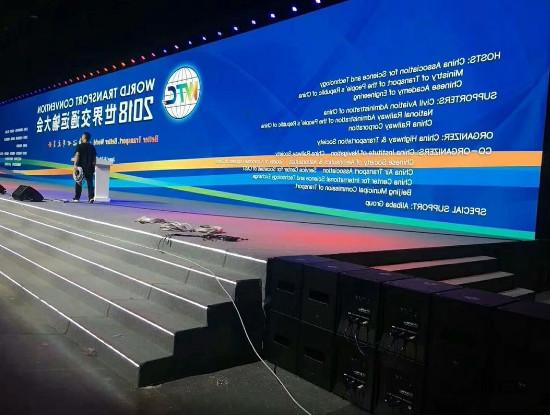

Outdoor Digital Display Board Details
1. Modular design for quick installation and removal;
2. Highly reliable data hot backup, avoiding any communication
risks during the exhibition;
3. High refresh rate up to 4200Hz, no flashing live video;
4. Super brightness and color uniformity, pixel calibration before
leaving the factory;
5. Horizontal/vertical viewing angle up to 120° uniform HD display,
no color cast, no color spots, no color blocks.
Feature :
1. Intelligent monitoring module. Intelligent cabinet with
intelligent monitoring (LCD display) showing the working status,
smart monitoring the signal and recoard the spain life.
2. Perfect design of maintenance, New generation rental series
supports both front and rear maintenance (both regular and power
supply), saving time and space for customer
3. Use of Special heat dissipation structure make excellent heat
dissipation.
4. Ultra-wide viewing angle give you the largest screen viewing
area
5. Die-cast aluminum cabinet design light and easy to transport.
6. High refresh rate ,can reach 3840Hz to get better visual effect
7. High contrast and uniform color .
8. Fast install and disassemble, has 4-8 pairs fast locks, can
install the two cabiet with 20sec easily.
9. Multi installation way, the led display can be hung or standing
on the floor directly.
10. It is compatible with most of the control card in the market,
like Novastar, Linsn, Colorlight,Xixun,Listen etc.
Specifications :
| OUTDOOR P5 SMD 3IN1 TECHNICAL PARAMETERS |
Unit Module | Item | Parameter |
| Model Number | P5-8S |
| Module size | 3200mm*160mm |
| Pixel pitch | 5mm |
| Pixels Density | 40000 dots/m2 |
| Pixel configuration | 1R1G1B |
| LED Package mode | SMD2727 SMD2525 |
| Pixel resolution | 64dots(W)*32dots(H) |
| Max Power | 50W |
| Module thickness | 17.05mm |
| Weight | 0.5kg |
| Drive type | Constant drive |
| Scan mode | 1/8scan |
| Port type | HUB75 |
| Brightness of white balance | ≥6500cd/m2 |
| LED Cabinet | Dimension | 640mm*640mm |
| Monomer Module Number | 8pcs |
| Power supply | 5V/60A*2 pcs |
| Thermal discharge | fan 1pcs |
| Pixel per cabinet | 128mm*128mm |
| Best viewing distance | 5M～100M |
| Best viewing angle | 160°(W) 120°(H) |
| Temperature | storage:-35℃～+85℃ |
| | working:-20℃～+50℃ |
| Relative humidity | 10%-95% |
| Thickness | 85mm |
| Power | Working voltage | AC220V±10% |
| Average Power consumption | <390W/㎡ |
| Max.Power consumption | <980W/㎡ |
| Current | <20mA(single LED) |
Control system | CPU | Pentium4 or above P4 |
| Operation system | XP/WIN7 |
| Control method | Synchronization |
Main technical parameter | Driving device | Constant drive IC |
| Refresh frequency | >1920HZ |
| Grey scale/colors | 16384gray level/16.7M colors |
| | 16384gray level/16.7M colors |
| MTBF | >9000hours |
| Power switch | Automatic switch |
| Display Mode | ≥800*600/1024*768 |
Application Of Outdoor Full Color LED Display:
we with its unique advantages, has gradually replaced the
traditional billboards etc. LED display advertising has become a
new force in the media industry.Traditional advertising can only
show pictures, But LED display can perfect combine text, pictures,
video, and sound with high resolution, high brightness and full
color! LED display Advertising can easily attract the attention of
pedestrians, and also are easy to remember,which can generate
greater advertising effectiveness.
