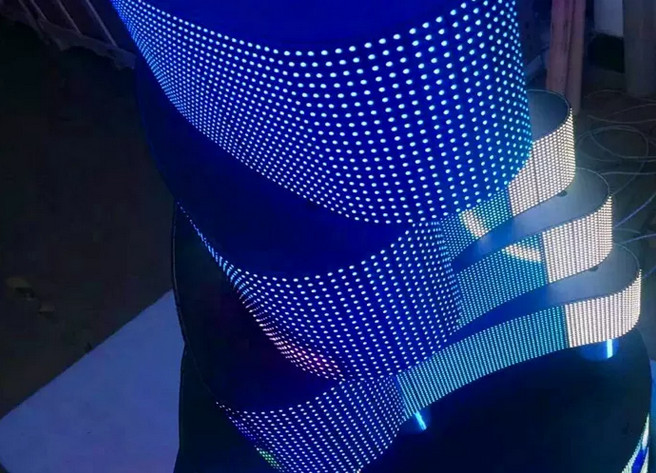

Full Color Bendable Flexible LED Screen High Brightness For
Architecture Decoration
Description:
Dosatronics LED displays are high tech product with our own patent.
Especially outdoor LED display for advertising has high brightness,
high contrast, high refresh rate…All are popular both in domestic
and overseas market. We adopt unbeatable product stability through
strict Quality Control System. It is very correct for you to choose
our company, our LED display products. All of them has 3 years
quality warranty since all component are extremely good. They can
bring you large fortune in a very short time.
Applications:
Our Full Color indoor Flexible SMD Outdoor P6.66 LED Display is
mainly for indoor usage, such as commercial advertising,
mobile media, night club, entertainment events, business
establishments, can install in banks, stock exchange
centers, bus station, schools, telecommunications, customs,
stadiums, studio, shopping, malls, railways,
airports, harbors, etc.
Features:
it is super thin, very light weight and most flexible to design
shapes, effects, in any types, arc in any angles. With repeating
curving, it won't break LEDs as well design of mask covers.
1. Module with small-unit and flexible design,makes possiblity of
more complicated shapes for the video show.
2. Assembling screen with soft led modules directly,saving time and
effort,easy operation.
3. Magnet connection,easy to assemble & disassemble,it is frontal
service maintenance.
4. No cabinet metal frame,drastically deducting the screen
weight.we can design any shape of structure as you need.
5. Strict quality control and long-term application experience
verified the stablity and excellent performance by using Epistar
LED, and MBI5124 Driving IC for high refresh rate and performance.
6. Widely applied in shaped stage background/exhibition/shopping
mall etc.
Soft LED Display Panel Specifications:
| Pixel Pitch | 6.66mm |
| Module Size | 320*160mm |
| Module Resolution(pixels) | 48*24 |
| Cabinet Size | 768mm×480mm |
| Panel Resolution(pixels) | 96×96 |
| Pixel Configuration(RGB) | SMD 3 in 1 |
| Pixel Density(pixels/㎡) | 22545 |
| Brightness(cd/㎡) | 1000 |
| Best Viewing Distance(m) | 6-50 |
| Average Power Consumption(W/㎡) | 300 |
| Waterproof Level | IP65 |
| Drive Method | 1/8 scan |
| LED SPEC | 3528 |
| Viewing Angle | 140°(H)/140°(V) |
| Operating Temperature | –40~100 |
| Video Frame Rate(Hz) | ≥ 60HZ |
| Display Refresh Rate(Hz) | ≥ 1000HZ |
| Grey Level(colors) | 16.7million |
| MTBF | ≥50,000 hours |
| Lifespan | ≥100,000Hours |
| Working Voltage | 220V±15% OR 110V±15% |
| Wavelength | R 620-625 G 520-525 B 470-475 |
| Graphics Card | DVI Graphics card |
| Video Signal | RF, S-Video, RGB, RGBHV, YUV, YC, etc. |
| Control System | LINSN |
| Software | LED studio 10.0 |
| Installation | Wall mount, hung and stand structure |
