4000nit P10.4mm IP23 Transparent LED Window Display

    Buy cheap 4000nit P10.4mm IP23 Transparent LED Window Display from wholesalers

    Buy cheap 4000nit P10.4mm IP23 Transparent LED Window Display from wholesalers
    • Buy cheap 4000nit P10.4mm IP23 Transparent LED Window Display from wholesalers
    • Buy cheap 4000nit P10.4mm IP23 Transparent LED Window Display from wholesalers

    4000nit P10.4mm IP23 Transparent LED Window Display

    Ask Lasest Price
    Brand Name : JuCaiYuan
    Model Number : P7.81mm / 10.4mm
    Certification : CE ROHS FCC
    Price : Negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000 ㎡/month
    Delivery Time : 12-20 working days after deposit
    • Product Details
    • Company Profile

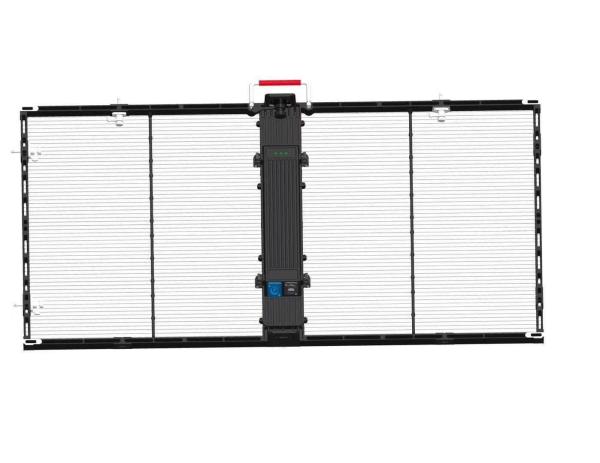

    4000nit P10.4mm IP23 Transparent LED Window Display

    P7.81mm / 10.4mm COB outdoor transparent LED display high brightness


    Features


    1. Made with high resolution and high quality led lamps,good display vision

    2. Super thin cabinets, less than 51mm thickness, and light weight,only with 6kgs per panel,it is portable and easy to move

    3.With transparent glass cover for good vision and protection,can be used as a windon screen directly

    4. Exquisite and tasteful appearance due to structural wire layout

    5. High refresh rate up 1920Hz,and high brightness up to 5500nits,suit for indoor and outdoor use

    6. Packed with wooden case or flight case, convenient to be collected and move


    Technical Specification


    ModelP3.91P3.91P7.81P7.81P10.4
    Pixel pitch3.91-7.813.91-7.827.817.81-15.62510.4
    LampIndoor SMD2121Outdoor SMD1921Outdoor SMD2525Outdoor SMD2525Outdoor SMD2525
    Pixel density32768327681638481929230
    Module size500mm*500 or500mm*1000mm or1000mm*1000mm Can be Customized Size available
    Cabinet materialAcryic Aluminum Steel
    weight15KG/㎡15KG/㎡14KG/㎡14KG/㎡14KG/㎡
    Transparency65%65%70%75%80%
    Brightness≥1000nit≥4500nit≥4500nit≥4500nit≥4000nit
    Refresh rate≥1920HZ
    Scan mode1/1651/851/251/251/35
    Max power consumption400W/㎡600W/㎡600W/㎡550W/㎡550W/㎡
    Average power120W/㎡180W/㎡180W/㎡180W/㎡180W/㎡
    PCBFR-4 four layers board,2.0mm thickness
    Driver ICMBI5124,Hight Refresh Rate
    InstallationHanging or Stacking
    Brightness level256 Level

    Competitive Advantages:

    1. Good quality;
    2. Good price;
    3. Good 24hours service;
    4. Promote delivery;
    5. Energy-saving;
    6. Small order accepted.


    Application:



    Ultra Thin 10mm Transparent Mesh Led Display has extremely high 80% transparency and able to achieve a brilliant visual effect. It is directly mounted on glass windows against the building for advertising and decoration, as well as rental application for stage. It's ultra thin and lightweight, making it the perfect choice for creative designing company to use on large-scale applications.
