High Refresh Rate BUH75 SMD2121 Poster Led Screen

Ask Lasest Price
Brand Name :	JuCaiYuan
Model Number :	P3
Certification :	CE,FCC,ROHS
Price :	Negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000 ㎡/month
Delivery Time :	12-20 working days after deposit

Add to Cart

Product Details
Company Profile

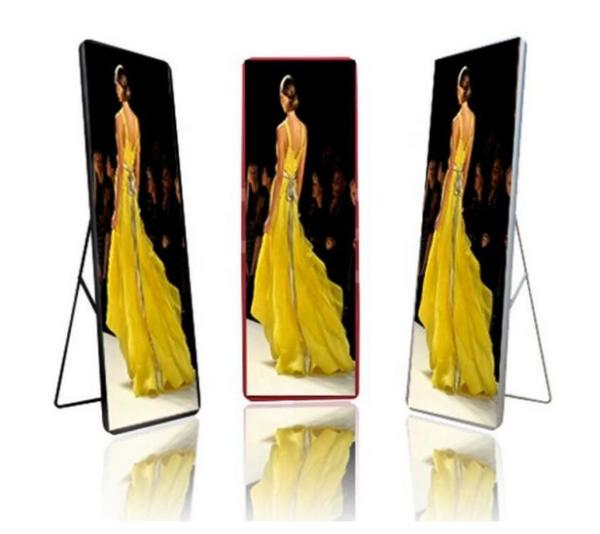

High Refresh Rate BUH75 SMD2121 Poster Led Screen

Product Description

Poster LED display is ultra-thin and super-light, it can be fixed by magnet and screws two way. If fixed by magnets, you can maintain led display from both front side and rear side. Poster led display with bracket that can stand on floor directly, you can also hang it on wall if necessary. It is perfect alternatives for tranditional Poster.

Feature

1. Plug and play zero setting.
2. Support Iso&Android devices.
3. Easy to opeartion,control by special mobile APP LEDArt to connect to the screen WIFI.
It support shot and send.
4. Ultra-thin&Ultra light design,the weight is only 36kg/pcs and the thickness is 30mm.
5. Can support 10pcs unit together with no gap compared with the similar product.

Product specification

Item	Technical parameter
Pixel Pitch	3mm
Module Resolution	160*80 dots
Module Size	320*160mm
Pixel configuration	1R1G1B
Module Chip	Kinglight/Nationstar
Driving Method	1/32Scan
Physical Density	250,000 dots/m2
LED Encapsulation	SMD1515
Module Port	BUH75
Module Consumption	≤16W
Brightness	1200 cd/m2
Cabinet Dimension	640*1920mm
Cabinet External Dimensions	7001980100mm
Cabinet Resolution	320*960 dots
Quantities of module	2*12
Cabinet Flatness	Tolerance of inter pixel ≤0.3mm
Cabinet Material	Aluminume,Iron
Cabinet Weight	38KG
Option Distance	2--80M
Viewing Angle	Horizontal 140° Vertical 120°
Max. Power consumption	675W/sqm
Driving Device	ICN2153IC
Frame Frequency	60Hz
Screen Flatness	Tolerance of cabinets ≤0.6mm
Refresh Frequency	1920Hz/3840Hz
Control Mode	Wifi asynchronization
Working Environment	Temperature -10℃~60℃ Humidity 10%~70%
Display Working Voltage	AC110V/220V , 50Hz/60Hz
Colour temperature	8500K-11500K
Communication distance	Network cable: 100m, Multi-model: 500m, Single-model fiber: 20km
Gray scale	≥16.7M
MTBF	>10,000 hours
Support video source	HDMI, CVBS, SDI , DVI etc

Application

Shopping Mall Square, Exhibition and Exhibition P3 HD LED Poster Screen / Indoor LED Display Full Color

LED poster display, is almost the most popular led screen in recent years. and with slim and fashion outline, 7 color to choose . the most important is easy for software settings compared with traditional advertising ,also can show text, pictures, video, and sound with high resolution, high brightness.
