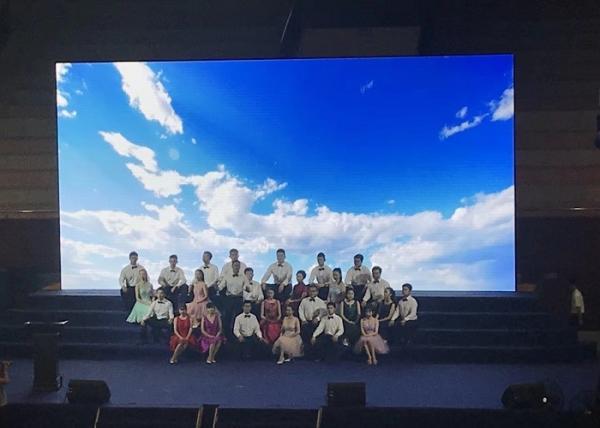

1/16 Scan 1R1G1B SMD 2121 Wall Video LED Stage Display P4 Pixel
Pitch
Stage Led Wall Introduction:
1.wide visual angle LED tube,up to 140 degrees in the horizontal
angle,up to 140 degrees in the elevation angle, any angle with this
range,the image is not deformed,not color cast.
2.High efficiency : large LED screen products is used super bright
low power driven LED, saving more than 20% , the PFC circuit design
with temperature control, display control, brightness control
technology, can achieve energy-saving effect on the whole product.
3.Excellent heat dissipation design and heat dissipation
performance, don't need external fan, air conditioning etc., low
noise;Cabinet’s weight is light, the cost and the operating of
assemble are low .
4.Standardized design: case, module and other parts of the
standardized design, the compatibility between different products,
high degree of standardization, for the production and maintenance
to provide great convenience.
5.High stability and reliability: fine selection of raw materials,
scientific design, strict manufacturing processes to ensure the
high stability and reliability of products, bring the long-term
benefits to customers.
Main Specifications :
| Stage Led Wall |
| Pixel Pitch : | 4mm | Module Pixles : | 64x32=2048dots/sqm |
| Module Size : | 512x512mm | Scan Mode : | 1/16 Scan |
| Brightness : | 1500cd/sqm | Refresh Rate : | >2400Hz |
| IC : | MBI5124 | LED Encapsulation : | SMD2121 / SMD 3-IN-1 |
| Power Supply : | Meanwell | Color Temperature : | 7000 - 8000K |
| Power Input : | AC: 80-265V, 47- 63Hz. | Viewing Angle : | H:140° V:140° |
| Aver. Power : | 300w/sqm | Gray Grade : | 16bit |
| Working TEM./Hum. : | -25-50℃/ 10%~90% | Color Type : | Full color |
| Operating System : | Android/ Windows | Best Viewing Distance : | 4M |
