SMD 3 In 1 Perimeter Led Display P10 Indoor Full Color Led Display
For Advertising
Quick Detail of Stadium Perimeter LED Display:
1. Top access;
2. 4000Hz refresh rate;
3. 16bit processing depth;
4. Stable and reliable;
5. Fast installation;
6. 10000:1 contrast ratio;
7. Good consistency
8. CE & ROHS certification
Feature of Stadium Video Board:
1. Top access Innovative top access cabinet structure helps to achieve fast
installation & maintenance easily, all the parts (module, power and
board card) can be easily maintained from the top of screen.
2. Accurate calibration technology Point-by-point chroma correction, correcting color of each diode,
and eliminating chroma differences among different batches of leds.
3. High refresh rate , high brightness and high contrast which make the screen without any delay and smear phenomenon under
direct sunlight.
4. Energy saving:low electric current,high-bright lamps,equipped with PFC switching
power supply that save 30% electricty.
5. Seamless assembled Both sides of cabinet lock designed, and precision can control in
0.3 mm.
Application:
The full-color LED display has a strong visual impact, an
ultra-clear surface and a huge shock. There is no
obvious strong advertising charm! It is conducive to the shaping
and dissemination of brand image. Many
large screens are local landmarks and are themselves a good
advertisement.

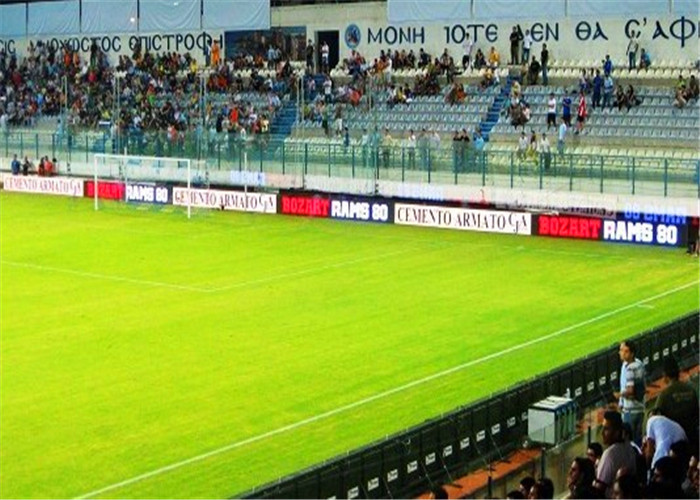

It is used for soccer or football stadium for live broadcasting
matches report.
Specifications:
| Pixel Pitch | 16mm |
| Pixel Composition | 1R1G1B |
| LED Type | DIP546 |
| Resolution | 3,906 dots/sq.m |
| LED Module Pixel | W 16 × H 16 = 256 dots |
| LED Module Size | W 256 × H 256 mm |
| Cabinet Material | Steel waterproof cabinet |
| Driving Method | Static scan |
| Brightness | ≥7500 nits/sq.m |
| Refresh Rate | ≥1200 Hz |
| Out of Control Dot Rate | ＜0.0001 |
| Earth Leakage Current | ＜2mA |
| MTBF | ＞5,000 hours |
| Life Span | ＞100,000 hours |
| Power Supply | 110V/60HZ and 220V/50HZ interchangeable |
| Humidity | 10%~90% |
| Control Method | Synchronization control |
| Input Signal | DVI, COMPOSITE VIDEO, S-VIDEO, HDMI |
