FCC SMD Outdoor LED Advertising Panel Digital Signage SMD3535 AC110V

Ask Lasest Price
Brand Name :	JuCaiYuan
Model Number :	P10 P6 P8
Certification :	CE/ROHS/FCC
Price :	negotiation
Payment Terms :	L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :	10000sqm per month
Delivery Time :	3-25 working days after finished the payment

Add to Cart

Product Details
Company Profile

FCC SMD Outdoor LED Advertising Panel Digital Signage SMD3535 AC110V

Overview

Quick Details

Application:: advertisement

Color:: full color

Panel Size:: 960X960mm

Pixel Pitch:: 10mm

Place of Origin:: Guangdong, China

Model Number:: P10

Brand Name:: JUCAIYUAN

Function:: SDK

Usage:: OUTDOOR

Display Function:: Outdoor advertising display

Pixels:: 10mm

Screen Dimension:: Customized

LED chip:: SMD3535

Pixel Density:: 10000 Dots/sqm

Brightness:: 6500cd/sqm

Refresh Rate:: >1000HZ

Life-span:: 100,000 hours

Scan:: 1/4 Scan

Supply Ability

Supply Ability: 5000 Square Inch/Square Inches per Year

Packaging & Delivery

Packaging Details: Wooden Case
led display guangdong

Port: Shenzhen, Guangdong

Picture Example:

Lead Time:

Quantity(Pieces)	1 - 6	>6
Est. Time(days)	5	To be negotiated

Online Customization

Click the image below to start online customization for the design you want.

FCC SMD Outdoor LED Advertising Panel Digital Signage SMD3535 AC110V

Setting Information
Name	Outdoor Fixed P10 LED
rated voltage	AC110-240V;50/60HZ
Power Consumption (Average)	300w/㎡
Humidity	15%-85%
Refresh Rate	>1000Hz
Drive Mode	1/4Scan
Module Weight	39kg
Certificate	CE, ROHS, FCC

Hot product recommendation

Outdoor Fixed P10 LED

&. Pixel Pitch: 10mm; Cabinet Size: 960×960mm
 &. SMD 3535 LED; High brightness: 6500nits, and brightness adjustable,High intensity.
 &. Standard processing technology to ensure each row and each column lamps at the same horizontal line, and ensure light consistency and clear, stability pictures.
 &. SD to ensure large viewing angle, up to 120° horizontally and 120° vertically. Image no distortion, no color cast in any angle within this range.

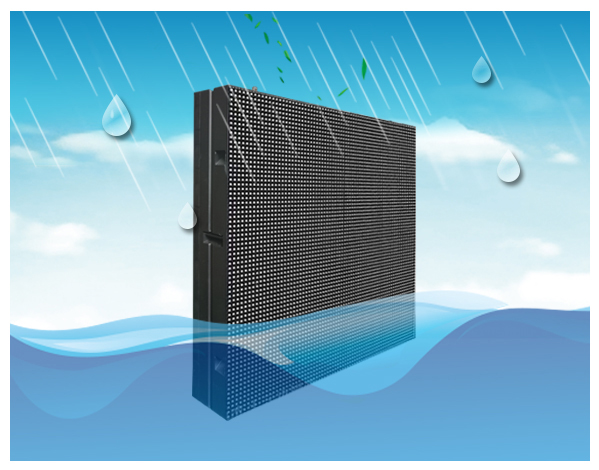

 & . Cabinet design lightweight, easy to maintain, IP65 high-performance waterproof and dust resistance.

Protection Rate IP65 and Module Style Design.

Protection rate IP65, installation without frame. Module Style Design, fast installation and easy maintenance with low cost.

Ultra low power consumption, the first option for saving energy

7500 nits brightness with 330W/sqm power consumption, 50% less than the traditional panels. Excellent display performance, the first option for millions of advertising operators.

Applications

FCC SMD Outdoor LED Advertising Panel Digital Signage SMD3535 AC110V

00:15

Outdoor P10led display

1: The installation and connection hardware you need, all the cables needed, and the controller needed to connect the video source to the screen2: The system and all components enjoy a 3-year manufacturer's warranty for free parts replacement!
3: In addition, you will also get additional free parts, such as LED modules, power supplies, and cables. Hanging hardware, etc.
4: Fast delivery time (5 days) from after payment
5: Our products have passed strict quality inspection/aging test, quality assurance, and 3 years warranty.

This is a customized advertising screen with a pitch of 10mm and a pixel interval of 3mm. The panel will be displayed in high definition at about 15 feet away or more.

If you need a different size screen, please contact me! We can make any quantity, any size! Your inquiry is always welcome.

Specification

Pixel Pitch	10mm	Type	SMD3535
Chip parameters	Red λd:(620-625nm) IV:(800-960mcd)	Chip parameters	Green λd:(520-525nm) IV:(1350-1650mcd)
Chip parameters	Blue λd:(470-475nm) IV:(330-400mcd)	Module Resolution	32×16=512(Dots)
Module Size	320×160mm	Pixel Density	10000 Dots/㎡
Cabinet Resolution	96×96=9216(Dots)	Cabinet Dimension(WHD)	960×960×130mm
Cabinets Material	Steel	Cabinet Weight	39kg
Brightness	≥4500cd/㎡	Viewing Angle	120(Horizontal),120(Vertical)
Nearest Viewing Distance	13m	Power Consumption (Max)	1000 w/㎡
Power Consumption (Average)	300 w/㎡	Refresh Rate	≥1000Hz
Input Voltage	AC110-220V±10%,50/60Hz	Grey Scale Levels	16bit
Brightness Adjustment	256 color levels,can be adjusted manually and automatically optional	Life-span	100,000 hours
Protection Level(front/back)	IP66/IP54	Working Temperature	-30℃~50℃
Humidity	15%~85%	Drive Mode/Driver Position	Constant driving 1/2 Scan,Combined diver board
Input Signal	AVI/MPG/MPEG/TXT.etc	Control Mode	Synchronization/Asynchronization
Certificate Control System	CE,ROHS,FCC,ISO9001,TUV Sending Card, Receiving Card,Receiving HUB	PC Operating System	Microsoft Windows 7, XP and Vista
CSoftware	LED Studio ( MIKE_TV-linsn )	Certificate	CE,ROHS,FCC,ISO9001,TUV
Communication Type	Net cable,3G,WIFI(Sold separately)	Control Card Input	DVI,USB,RJ45,HDMI(Sold separately)
Language	English,French,Japanese,Russian,Thai,Spanish,Polish,Italian,Portuguese,Turkish,Dutch,Greek,Bulgarian,Romanian,Arabic

Packing & Delivery

Fastest Delivery and Best Online Services

Muenled provides best online services to the customers, and we are always ready to assist you when you need us. Also, we take
 great care of the safety of the products. Our company is located just five-minute drive from airport and port. We work with the
 leading logistics who ensure fastest and safest delivery of your products.

Multiple packaging methods

Carton packaging Wooden box packaging Air box packaging-built-in anti-extrusion foam to ensure that the product is intact and
 delivered to the customer
