SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting

    Buy cheap SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting from wholesalers

    Buy cheap SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting from wholesalers
    • Buy cheap SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting from wholesalers
    • Buy cheap SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting from wholesalers
    • Buy cheap SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting from wholesalers
    • Buy cheap SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting from wholesalers
    • Buy cheap SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting from wholesalers
    • Buy cheap SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting from wholesalers

    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting

    Ask Lasest Price
    Brand Name : JuCaiYuan
    Model Number : P3.91 P4.81
    Certification : CE/ROHS/FCC
    Price : negotiation
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram
    Supply Ability : 10000sqm per month
    Delivery Time : 3-25 working days after finished the payment
    • Product Details
    • Company Profile

    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting

    Overview
    Quick Details
    Application:
    advertisement
    Color:
    full color, full color
    Panel Size:
    576*576mm
    Pixel Pitch:
    3mm
    Place of Origin:
    Guangdong, China
    Model Number:
    P3
    Brand Name:
    JUCAIYUAN
    Display Function:
    Video
    Pixels:
    3mm
    LED chip:
    Kinglight SMD2121
    Life span:
    100000H
    Refresh rate:
    1920HZ/3840HZ
    Warranty:
    2 Years
    Brightness:
    ≥2000cd/m2
    Control system:
    Novastar /linsn/colorlight
    Packaging & Delivery
    Packaging Details
    flight case ,exported carton. wooden case, Certainly the flight case will be better. It's all up to customer's requirements
    Picture Example:
    Lead Time:
    Quantity(Pieces) 1 - 100 >100
    Est. Time(days) 12 To be negotiated
    Product Description
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    P3 Die-casting Aluminum cabinet specific
    * pixel pitch 3mm
    *Modules size 192*192mm
    *cabinet size 576*576mm (768*768mm Optional)(Please contact me. then I can advise the Cabinet size and other parts to you.).
    * High brightness , high refresh rate.
    * Nova star/Linsn control system
    *indoor outdoor led screen
    *control model:Support Phone,PC,WIFI ,Live etc all signals model input
    * Specially use for TV studio, conference center,monitoring center and cinema, museum, studio.etc.
    * Seamless connection, high contrast
    ratio, high refresh rate
    Specification
    576*576mm/768*768mm Die-casting Aluminum Cabinet LED Display Series
    ITEM
    UNIT
    P3
    P6
    Pixel Pitch
    mm
    3
    6
    Pixel Matrix Per
    Pixel/sqm
    111111dots
    27777dots
    Pixel Configuration
    N/A
    RGB
    RGB
    Module Pixel structure
    N/A
    KingLight SMD2121
    KingLight SMD3528
    View distance
    meters
    ≥2m
    ≥6m
    Drive type
    constant drive
    IC 2037/5124
    IC2037/5020
    Scan
    N/A
    1/16
    1/16
    Power Supply
    W
    300W5V60A
    300W5V60A
    Module Dimension
    mm
    192*192
    192*192
    Screen Dimension
    mm
    576*576mm/768*768mm
    576*576mm/768*768mm
    Cabinet Dimension
    mm
    576*576mm/768*768mm
    576*576mm/768*768mm
    Cabinet Resolution
    Pixel
    192*192/256*256
    96*96/128*128
    Port type
    N/A
    Hub 75
    Hub 75
    Cabinet Weight
    kg
    13kg
    <13kg
    Service Access
    N/A
    Rear/Front
    Rear/Front
    View angle
    °
    160°/ 140°
    160°/ 140°
    Refresh Rate
    Hz
    1920/3840
    1920/3840
    Brightness
    nits
    ≥2000cd/sqm
    ≥2000cd/sqm
    Grey Scale (bit)
    bit
    16
    16
    IP Rate
    IP
    IP33
    IP33
    Life span
    hrs
    100000 hrs
    100000 hrs
    Working Temperature
    -10-40 ℃
    Storage Temperature
    -20-60 ℃
    Power Supply
    V
    AC100-240V(50-60Hz)
    Color temperature
    N/A
    3000-10000 K(adjustable)
    Package
    N/A
    Flight case/wooden case
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    LED Display Seamless Splicing
    * Slim and light weight, quick disassembly.
    * Weight: about 12kg/cabinet,one person can carry, saving time and effort.
    * High degree of protection, high durability.
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    Packing & Delivery
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting
    SMD2121 Outdoor Advertising LED Display Screen P5.95 IP33 Frontage Lighting

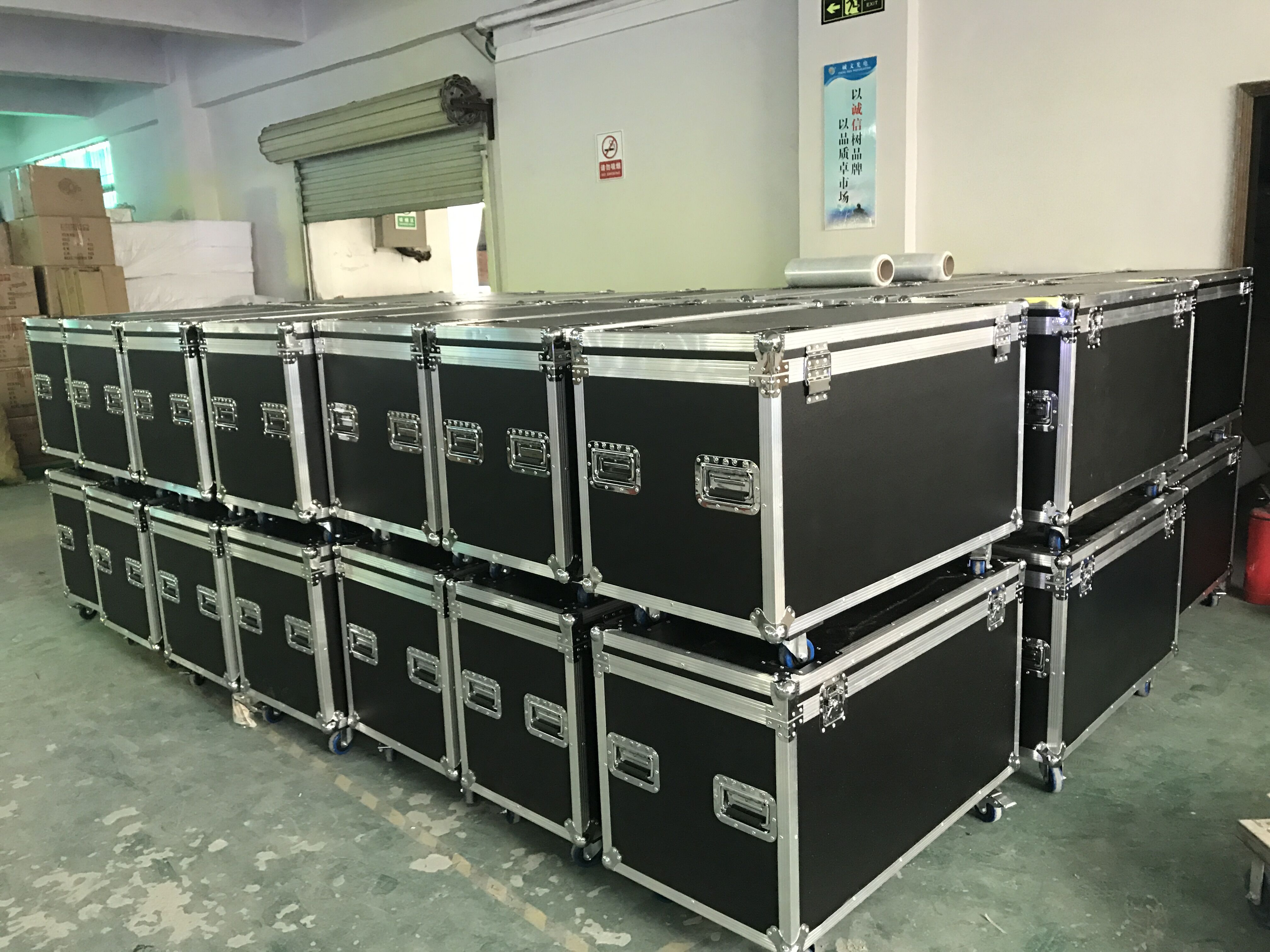

    Flight Case,Wooden box Or Carton Case
