1.High Resolution 2.5,3,4 mm pixel Spacing
2.Intensity >=5000 nit
3.High refresh rate,3840HZ
4.Front access design and front maintenance.
5.Multiple control Options,4G/Wifi/GPS
6.Made of high quality LEDs,Nationstar leds
7.Lower Power Consumption,Max power consumption only 250W.
2.Specifications:| Model Type: | P2.5 | P3.33 |
| Pixel Pitch | 2.5 mm | 3.33mm |
| LED Type | SMD 1921 | SMD1921 |
| Pixel Density | 160,000 dot/ m2 | 91,818 dots |
| Module Size | 480*320mm | 480*320mm |
| Frame Size | 1100mm( L) x 330mm(H) X W:90mm(bottom)/ 38mm (top) | 1100mm( L) x 330mm(H) X W:90mm(bottom)/ 38mm (top) |
| Frame Materials | Aluminum | Aluminum |
| Screen Size | 960mm*320mm | 960mm*320mm |
| Screen Resolution | 384*128 dot | 288*96 dots |
| Brightness | >=5000 nit | >=5000 nit |
| Contrast | >8000:1 | >8000:1 |
| View Angle | 150°(H)/150°(V) | 150°(H)/150°(V) |
| Scan Mode | 1/22 scan | 1/12 scan |
| Power Supply Input | DC10.5~40V | DC10.5~40V |
| Max Consumption | 250w | 250w |
| Average Consumption | 150w | 150w |
| Optimal Viewing Distance | 1-20M | 3--20M |
| MTBF | 10,000 Hours | 10,000 Hours |
| Fresh Frequency | >3840HZ | >2800HZ |
| Control Method | Asynchronous | Asynchronous |
| Control Mode | 3G/4G/WIFI/ Ethenet/ USB | 3G/4G/WIFI/ Ethenet/ USB |
| Temperature Operating | -40°~+70° | -40°~+75° |
| Working Humidity | 10%-90%RH |
| Screen Protection | Waterproof, rust-proof, dust-proof, anti-static, anti-mildew |
| Power Protection | over-temperature/over-current/ over-voltage protection |

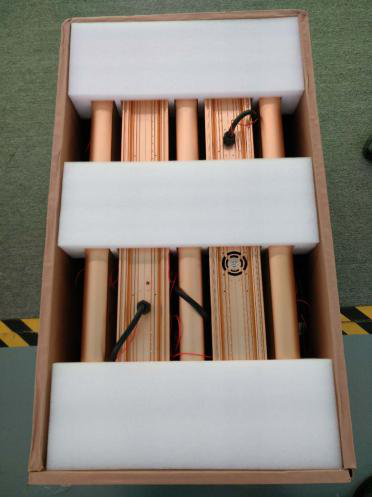

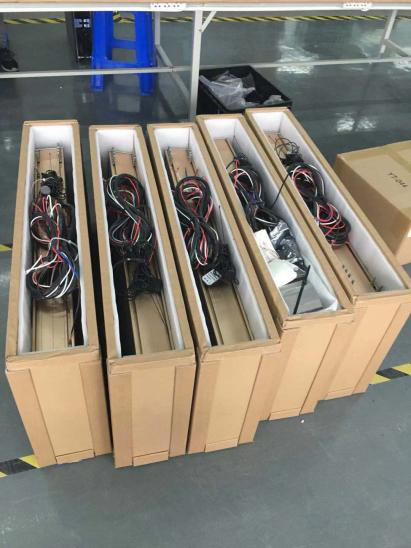

| Package | Honeybox |
| Package Dimension | 1100mm(L) X 500mm(H) X 200mm(W) |
| Screen Weight: | 12 kg | 12kg |
| Gross Weight: | 18 kg | 18Kg |
Founded in 2002 as a premium LED display,led traffic signage and
led lighting solution provider,Yaham has over 17 years in LED
industry.Based at Shenzhen,China,where the products are designed
and manufactured for the market all over the world.With
ISO9001:2008 registered and carrying out CE,UL,ETL and FCC
standards directto coordinate activities that direct and control
the performance of our company and products.
6.Workshop
7.Project
8.Trade Terms:
1.Payment: T/T , Western Union welcomed.
2.Production lead time 10days
3.Shipping freight are quoted under your requests
4.MOQ:1pc
5.Two years warranty
