Description:
1. High Degree of Visibility
78% transparent see-through, convenient for people inside and
outside to look-through.
2. Compact Design and Light Weight
8mm thickness of the LED panel has it almost suitable for any glass
wall building. The weight is only 15kg/sqm and minimizes the load
to the glass wall.
3. Ease of the Installation and Maintenance
No need to change any building structure. The modules can be stuck
to the back of the glass wall by the special glue;
4. Saving Money in Decoration for the Architecture
LED glass wall makes the vivid decoration and advertising, saving
other lights to lighting up the building.
5. Wide Application
The Glass Wall LED Screen can be applied wherever the glass wall
existed such as commercial building, landmark, architecture, art
center, shopping mall, super market, shain stores etc.
Applications:
Our Full Color SMD Outdoor LED Display is mainly for outdoor usage,
such as commercial advertising,mobile media, night club, entertainment events, business
establishments, can install in banks, stock exchange
centers, bus station, schools, telecommunications, customs,
stadiums, studio, shopping, malls, railways,
airports, harbors, etc.
Technical Parameters:
| Item | parameters |
| Pixel Pitch | 2.976mm |
| Pixel Density | 112896dos/sqm |
| LED Package | SMD2121 |
| Cabinet Size | 1000*500mm |
| cabinet Resolution | 64*64dot |
| Cabinet Materials | Aluminum |
| Cabinet Wegiht | 15kg/sq.m |
| Brightness | >1000nits |
| Driving Mode | 1/13 scan |
| Refresh Rate | >1920hz |
| Grey Level | 256levels |
| Viewing Angle | 140°/60° |
| Viewing Distance | 5-150m |
| Power Input | AC110V - 220V ±15%, 50HZ |
| Max Power Consumption | 320W/sqm |
| Ave. Power Consumptio | 96W/sqm |
| Working Temperature | -20℃ - +60℃ |
| Life Span | >100,000 Hours |
Gstar series led screen :
-1. Both 500x500mm and 500x1000mm cabinet available ;
-2. Strong handles which can be used as a ladder ;
-3. Available for both concave and convex curve ;
-4. Both the modules and power box can be taken out from the front
;
-5. Either magnets or screws or both for fixing the modules ;
-6. Two location pins on the left side of the led display cabinet ;
-7. Anti bump design at the bottom of the led screen cabinet.
Indoor Rental led screen
Features of Pxx full color HD indoor LED Display
1) High precision LED Lamp, improve the smooth of the LED Display;
2) Slim,light and thin cabinet, easy to move;
3) Die Cast Aluminum Cabinet, durable and won't deform;
4) High gray level, high refresh rate,high definition;
5) Ultra-wide viewing angle give you the largest screen viewing
area ;
6) Special heat dissipation structure make excellent heat
dissipation ;
7) Support Different Input and output signals, SDI, VGA, HDMI,
1080P, etc.Outdoor Rental led screen
* Perfect design of maintenance
new generation rental series supports rear maintenance (both module
and power supply), saving time and space for customers.
* Cabinet is water proof design
Protection grade IP65,mature signal transmission, safer and more
reliable.* Protection design

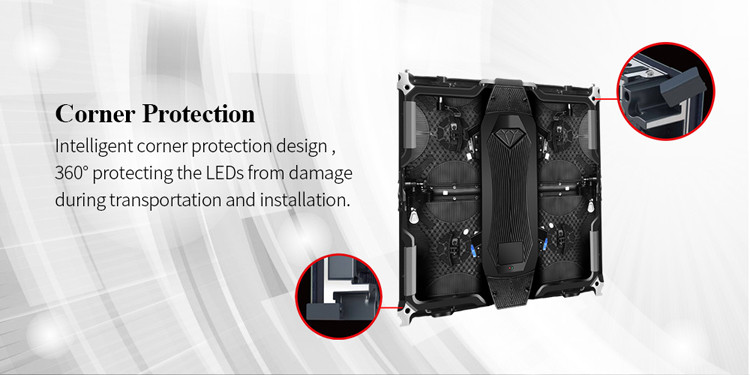

To protect both the module and user from accidental damage all
cabinet corners are designed with protect way.
There are two cabinet sizes for your choice: 500x500mm and
500x1000mm
1. Super Light and Thin 7KG/panel with a depth of 70mm which is
half of the depth of traditional LED screen,saving space and
transportation cost.
2. Seamless Splicing High conformity of picture without gap and
information missing, realizing a seamless splicing display.
3. Fast Installation and Dismantlement.
